Radial DiNET DAN-TX2 - High-Quality Audio Over Dante Network
Elevate your audio setup with the DiNET DAN-TX2, a 2-Channel analog-to-digital converter, providing seamless integration of line-level sources into Dante or AES67 networks.
Key Features:

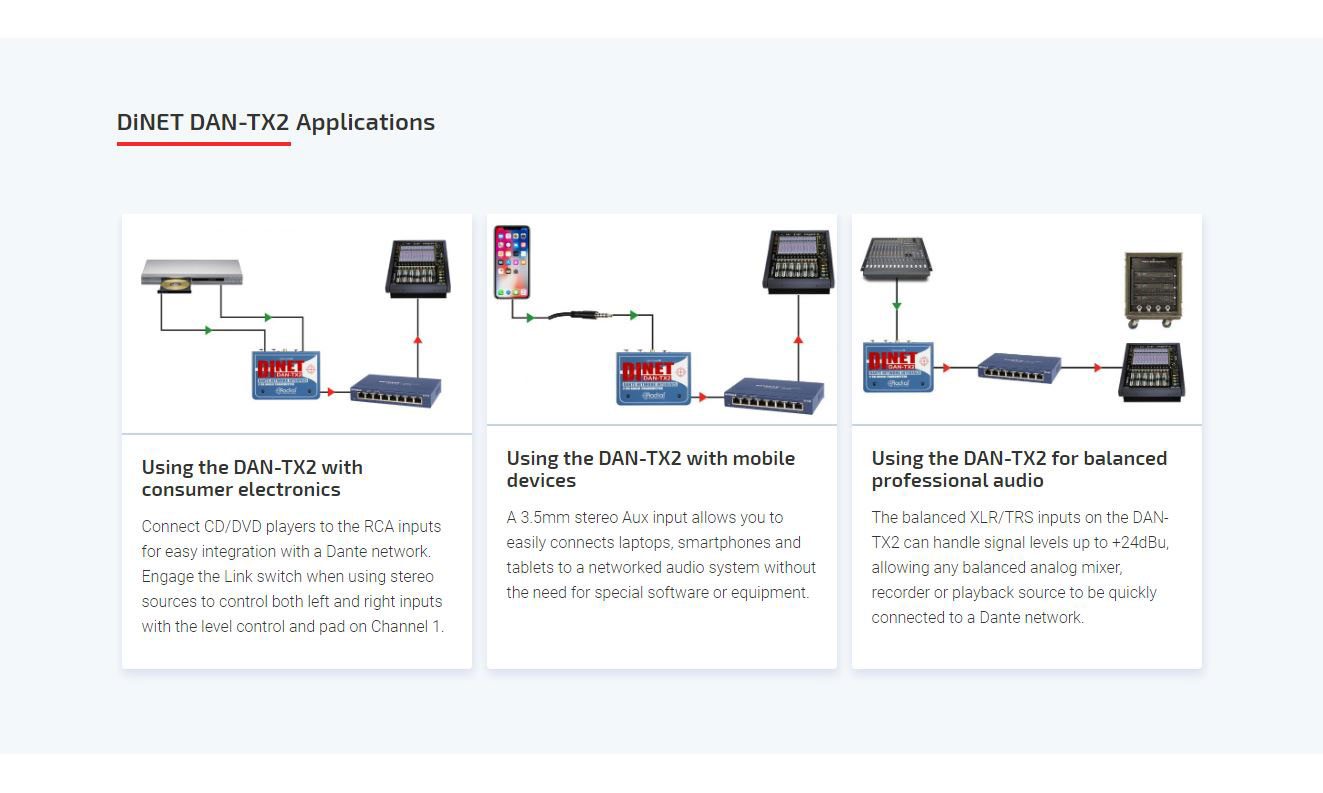

- Versatile Inputs: XLR, 1/4" TRS, RCA, and 3.5mm jacks ensure compatibility with a wide range of audio sources.
- Studio-Grade Conversion: Enjoy 24-bit/96kHz analog-to-digital conversion for pristine audio quality.
- Signal Handling: Capable of handling signal levels up to +24dBu, accommodating various audio gear.
- AES67 Compliant: Fully compliant with AES67 specifications for network compatibility.
- User-Friendly Controls: Trim controls, pad switches, and a link switch simplify operation, ideal for stereo sources.
- Secure Connectivity: RJ45 network connection with Neutrik etherCON compatibility prevents accidental disconnection.
- Redundant Powering: Use external power supply and Power over Ethernet (PoE) simultaneously for reliability.
- Rackmount Option: Install the DAN-TX2 in 19" equipment racks with the optional SA series rackmount adaptor kit.
Technical Specifications:
- Inputs: XLR, 1/4" TRS, RCA, 3.5mm
- Conversion: 24-bit/96kHz
- Max Signal Level: +24dBu
- AES67 Compliance: Yes
- Network Connection: RJ45 with etherCON compatibility
- Power Options: External power supply and Power over Ethernet
- Rackmountable: Yes (with optional SA series rackmount kit)
- Short Description:
- The DAN-TX2 is a 2-Channel analog-to-digital converter that allows you to connect any line level source to a Dante or AES67-compliant network.
- Bundled:
- No
- california pro_65:
- Warning - see www.P65Warnings.ca.gov
- Max Number of Channels:
- 2
- Max Sampling Rate:
- 96KHz
- Model:
- DAN- TX2
- Type (Interfaces):
- AES67/ Ravenna;Dante
- SKU:
- RAD-DAN-TX2
