SPL Studio Madison - 16+16 Channel AD/DA Converter and MADI Interface

Overview:

The SPL Studio Madison redefines studio connectivity with its 16 AD/DA converters, offering unparalleled audio conversion quality. It's an expandable multi-channel studio interface that stands out in its price range. With SmartMADI technology and compatibility with Madicon, the Madison scales up to meet the most demanding studio requirements. Designed for optimal performance, it features an extensive range of capabilities, including up to 2 km MADI transmission distance, low latency, and various sync options.

Key Features:

High-Performance Converters: 16 AD and 16 DA converters for superior audio quality.
SmartMADI Technology: Simplifies configuration and enhances reliability. Daisy chaining Madison units is seamless, just like Audio-Over-IP devices.
Versatile MADI Transmission: Supports distances up to 2 km with an incredibly low latency of 1 sample.
Varispeed Support: Accepts varispeed up to +/-12.5%, providing flexibility for various recording scenarios.
Multiple Sync Options: Synchronize to MADI, Wordclock, or Internal sources for stable operation.

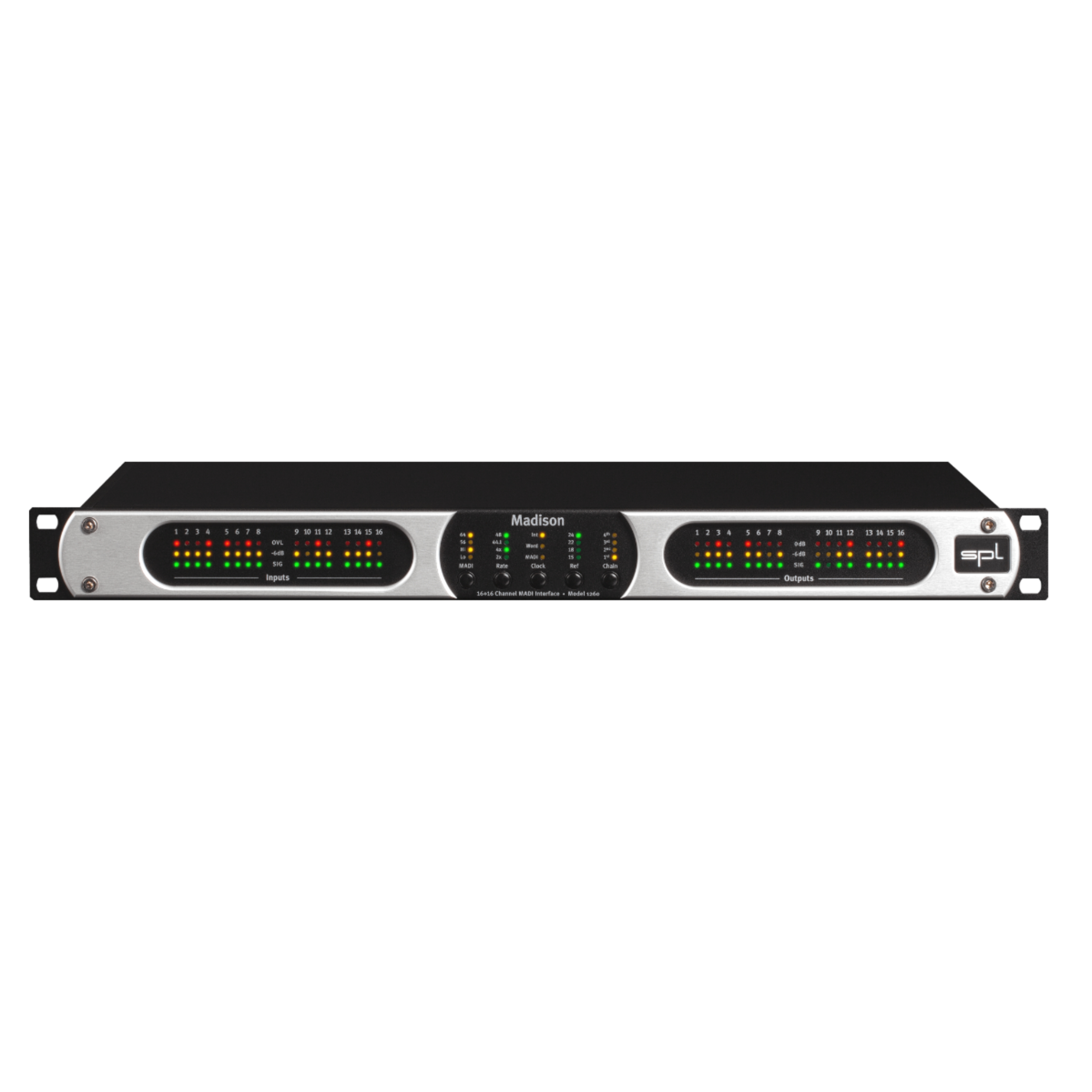

User-Friendly Interface: Intuitive level lights per channel, easily readable in blocks of four.
Customizable Reference Levels: Choose from 0dBfs levels of 15, 18, 22, or 24 dBu.
Noise-Sensitive Design: Fanless construction makes it ideal for environments where noise is a concern.
Redundant Power Supply: Optional feature for enhanced reliability.
Easy Integration: With the Madicon, Madison forms a powerful and user-friendly system.

Technical Specifications:

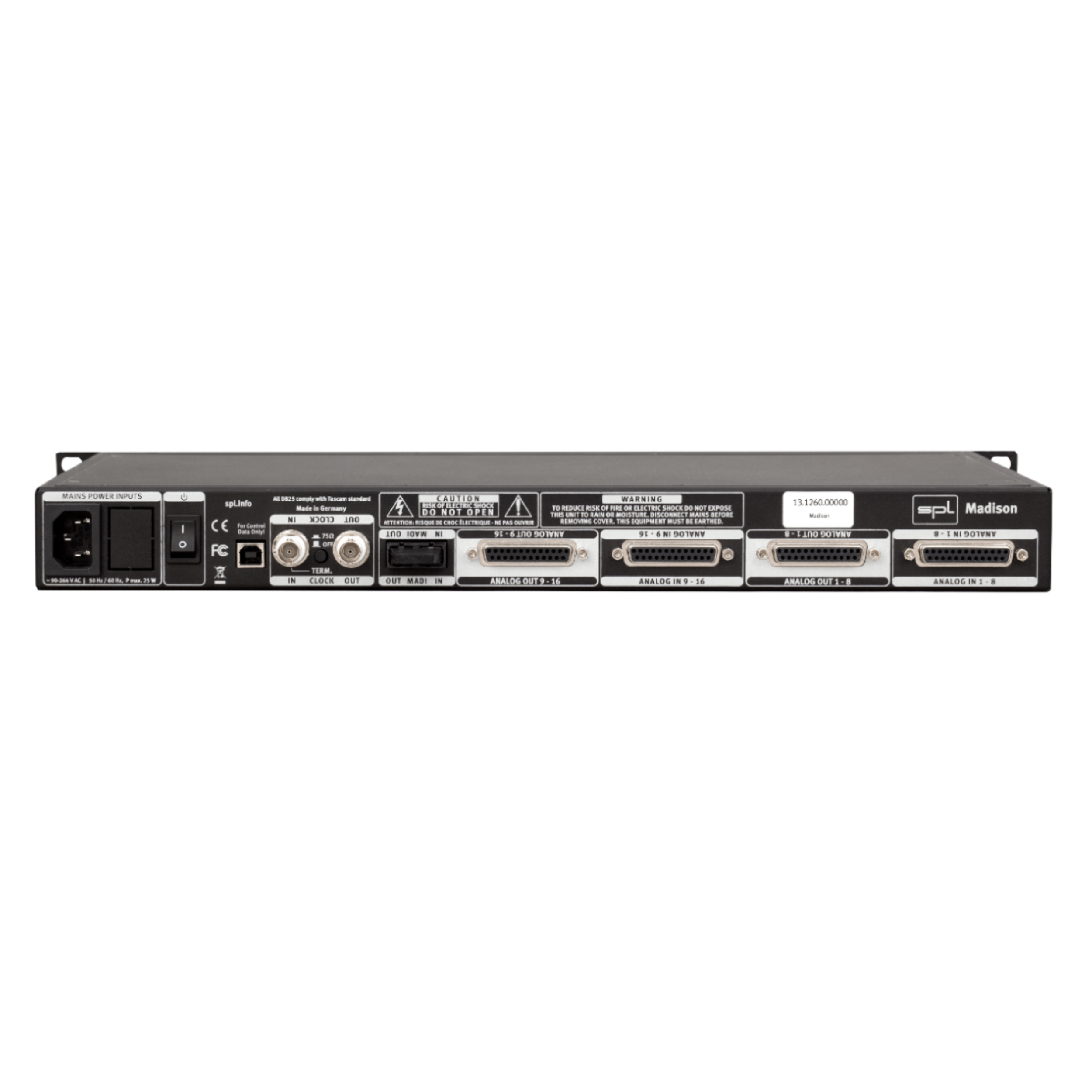

Analog Inputs/Outputs: DB25 (balanced).
Maximum Input/Output Gain: 24 dBu.
Common Mode Rejection: 82 dB at 1 kHz.
Crosstalk: -110 dB at 1 kHz, 48 kHz Sample Rate.
Dynamic Range: 115 dB (A-weighted, 48 kHz Sample Rate).
Digital I/O: MADI optical, Type SC, supporting a wide range of sample rates.
Wordclock Input: BNC, 75 Ω.
S/N Ratio: -115 dBFS (A-weighted, 48kHz SR).
Mains Power Supply: Operating voltage for analog audio +/- 17 V; digital audio +12 V, +5 V.
Dimensions & Weight: 482 x 44 x 260 mm; 3.05 kg.

Ideal for professional recording studios, SPL Studio Madison sets a new standard in AD/DA conversion, offering both robustness and high-end audio performance.
